Các hạt PCTFE kháng hóa học cho đúc phun chính xác

1. Product Description

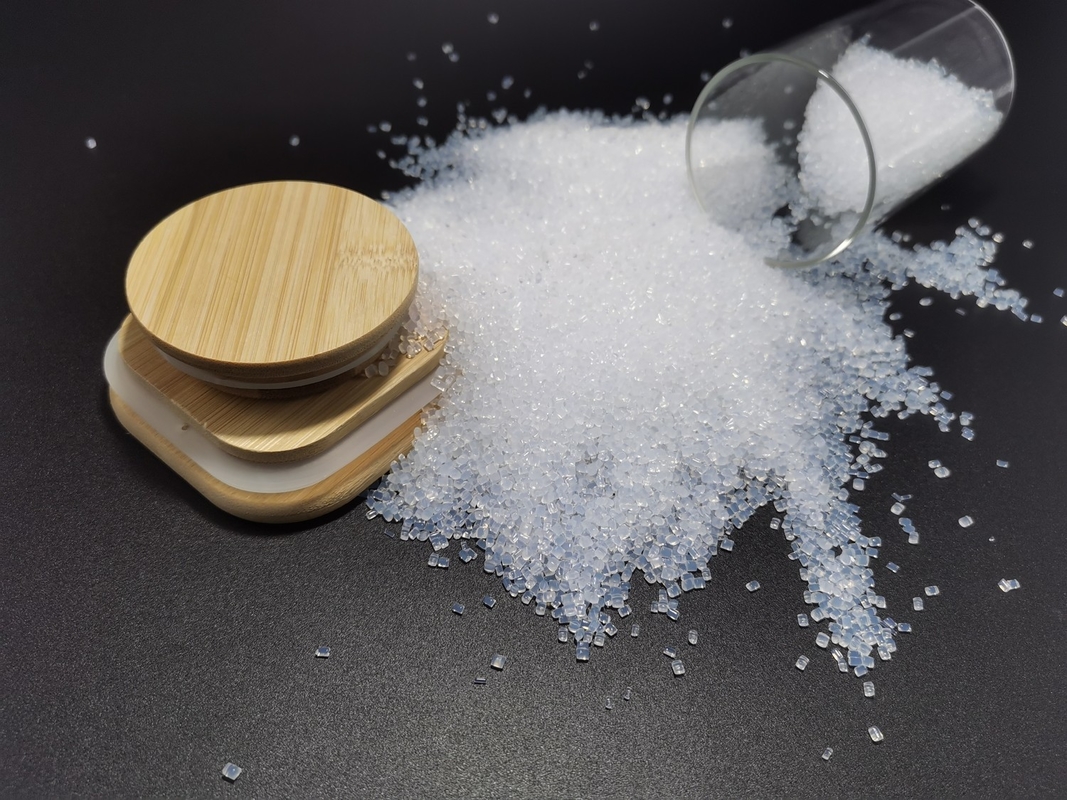

PCTFE (Polychlorotrifluoroethylene) resin is a high-performance fluoropolymer known for its exceptional moisture barrier properties, ultra-low gas permeability, and excellent clarity. It offers outstanding chemical resistance, dimensional stability, and low outgassing characteristics, making it ideal for precision molding applications. With a continuous service temperature range from -200°C to +150°C, PCTFE resin is widely used in critical environments where stability and purity are essential. Its non-flammable, non-toxic nature also complies with demanding safety standards such as FDA and ASTM.

2. Product Applications

PCTFE resin is suitable for use in the following industries and applications:

• Cryogenic components (valves, seals, O-rings)

• High-performance barrier films for moisture-sensitive electronics and pharmaceuticals

• Semiconductor and electronic parts

• Precision medical components

• Aerospace insulation and components

• Chemical processing equipment

• Transparent mechanical parts requiring optical clarity and dimensional stability



  3. Key Technical Properties

  Property	Value / Range	Test Method
  Appearance	Transparent / Clear Pellets	Visual Inspection
  Density	2.10 – 2.17 g/cm³	ASTM D792
  Melting Point	~210°C (410°F)	ASTM D3418
  Thermal Stability	Excellent up to 150°C continuous use	–
  Water Vapor Transmission Rate	< 0.1 g·mm/m²·day (extremely low)	ASTM E96
  Oxygen Permeability	< 1.0 cm³·mm/m²·day·atm	ASTM D1434
  Tensile Strength	≥ 35 MPa	ASTM D638
  Elongation at Break	≥ 50%	ASTM D638
  Flame Resistance	Non-flammable	UL 94 V-0
  Chemical Resistance	Excellent against acids, bases, oils	–





  4. FAQ – Frequently Asked Questions

  Q1: What makes PCTFE resin different from PTFE or FEP?
  A1: PCTFE has significantly lower gas permeability, better dimensional stability, and higher tensile strength, making it ideal for moisture- and air-sensitive applications.

  Q2: Can PCTFE resin be injection molded?
  A2: Yes, it has excellent processability for precision injection and compression molding.

  Q3: Is PCTFE FDA approved for food or medical use?
  A3: Yes, high-purity grades of PCTFE resin comply with FDA regulations and are suitable for medical applications.

  Q4: What’s the temperature range for PCTFE use?
  A4: PCTFE maintains performance from -200°C to +150°C.

  Q5: Is PCTFE resistant to radiation or UV?
  A5: PCTFE offers good resistance to UV and moderate resistance to gamma radiation.

  Q6: How does PCTFE perform in cryogenic conditions?
  A6: It retains mechanical integrity and sealing performance even at extremely low temperatures, making it ideal for cryogenic valves and gaskets.

  Q7: Can PCTFE be used as a transparent barrier film?
  A7: Yes, it is widely used for transparent films in pharmaceutical and electronics packaging due to its ultra-low moisture permeability.

  Q8: What is the shelf life of PCTFE resin?
  A8: If stored properly in dry conditions, it has an indefinite shelf life without performance degradation.

  Q9: Is PCTFE recyclable or reusable?
  A9: It can be reprocessed under controlled conditions, but recycling is less common due to its high-performance nature.

  Q10: What processing techniques are suitable for PCTFE resin?
  A10: Suitable methods include injection molding, compression molding, extrusion, and machining of molded parts.
